API & Webhook Integration Patterns

TECHNICAL LAB

This is a technical lab, not a client project. Nothing here is a client's system, a client's API or a client's data. It is my own reference implementation of the parts of an integration that actually break, written so that a prospective client can read the code rather than take my word for it.

Every module is dependency-free, runs on Node 20+, and is covered by tests that run in CI on every push.

---

The problem this addresses

An integration is easy to demonstrate and hard to keep running. The demo is a POST that works. The system is what happens on the Tuesday when the upstream form adds a field, the destination API returns 503 for ninety seconds, and the provider redelivers the same webhook four times because your handler was slow.

Six things separate the two, and each is a file in src/.

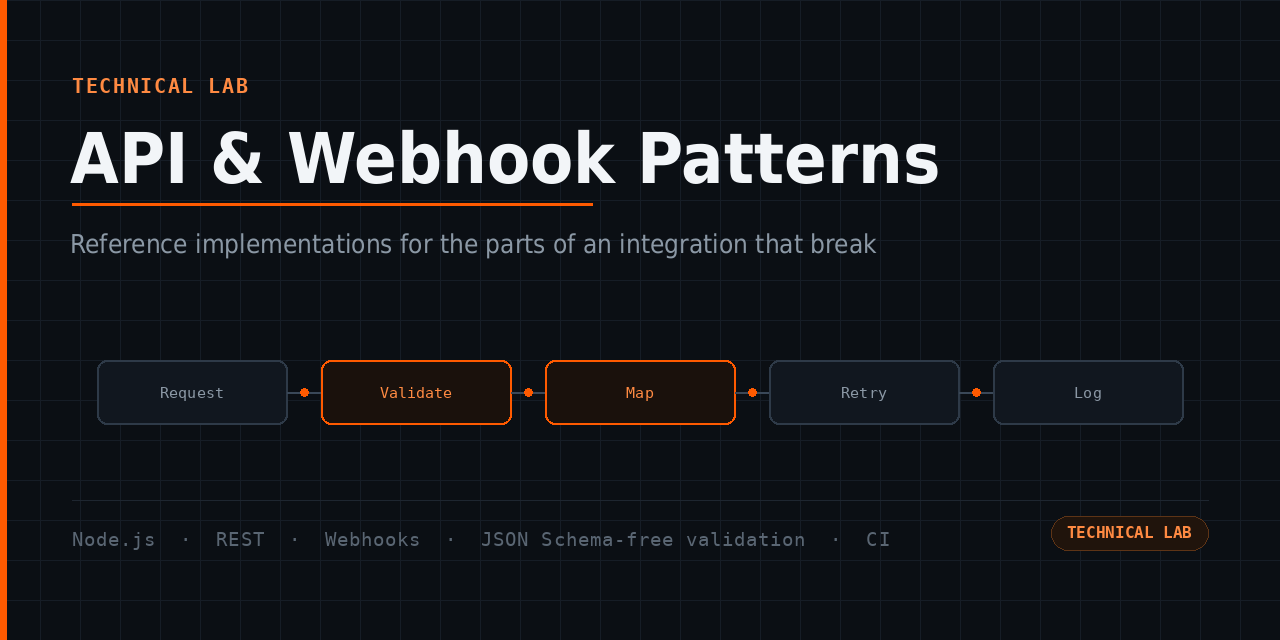

Architecture

flowchart LR
  A["Inbound request"] --> B["signature.js<br/>is it really them,<br/>and is it recent?"]
  B -- no --> R["401, logged"]
  B -- yes --> C["idempotency.js<br/>have we done<br/>this one already?"]
  C -- duplicate --> D["return the<br/>remembered result"]
  C -- new --> E["map.js<br/>their field names<br/>into ours"]
  E --> F["validate.js<br/>collect every<br/>problem at once"]
  F -- invalid --> G["422 with the<br/>full error list"]
  F -- valid --> H["retry.js<br/>do the work,<br/>back off on 5xx"]
  H --> I["logger.js<br/>structured,<br/>secrets redacted"]

Loading

The six modules

Module	The rule it encodes
src/validate.js	Validate at the boundary and return every failure together. A caller who learns about one bad field per round trip gives up on the fourth.
src/map.js	Write the field mapping down as data, not code, so the person who knows what "Account Name" means can review it. Report fields the mapping never consumed — silence is how a field that started mattering goes unnoticed.
src/retry.js	Only retry what a retry can fix. A 400 will be a 400 forever. Use full jitter, because without it every failed job in a batch retries at the same instant and recreates the outage.
src/idempotency.js	Providers redeliver. Without a memory, "delivered twice" means "invoiced twice".
src/signature.js	Verify HMAC in constant time, and reject stale timestamps — otherwise a captured request can be replayed forever.
src/logger.js	Redaction belongs in the logger, not in the discipline of whoever writes the next log line. An integration log is the first place a token lands and the last place anyone looks for one.

Worked example

examples/inbound-webhook.js wires all six into one handler in the order that matters — verify → deduplicate → map → validate → act — and then delivers the same event twice to show the second one doing no work.

$ node examples/inbound-webhook.js
{"ts":"...","level":"info","event":"webhook.unmapped_fields","fields":["id"]}
{"ts":"...","level":"info","event":"webhook.handled","id":"evt_0001","ein":"123456789"}
{ status: 200 }
{ status: 200 }   <- second delivery, no second record

Note what the mapping does to the input on the way through: " St. Mary's Foundation " becomes St. Mary's Foundation, and 12-3456789 becomes 123456789. That normalisation is the difference between a duplicate check that works and one that does not.

Testing

npm test                            # 31 unit tests, no dependencies
node examples/inbound-webhook.js    # the worked example, end to end

CI runs both on Node 20, 22 and 24.

Design decisions

1. No dependencies. A patterns repository that needs a lockfile to read is a worse teaching artefact and a worse dependency.
2. Clocks and randomness are injected. now, random and sleep are all parameters, which is why the backoff and the replay window can be tested deterministically instead of with timers.
3. The idempotency store is a Map on purpose. Swap it for Redis or a table and the call shape is unchanged; the interesting part is when it is consulted, not where it is stored.
4. Validation returns data, not exceptions. A 422 should tell the caller everything that is wrong in one response.

Limitations

• The idempotency store is in-process, so it does not survive a restart or span instances. That is a deliberate boundary, not an oversight — see above.
• No HTTP server, no framework adapter. The framework is the least interesting part of the problem.
• validate.js is a small rule set, not a JSON Schema implementation. If a project needs Schema, use Schema.
• signature.js implements the common timestamp.body HMAC scheme. Providers differ; check yours.

Where this comes from

The patterns are drawn from real automation and integration work — n8n, Make.com and Zapier builds, Google Workspace automation, and contact-data reconciliation. The code in this repository is mine and newly written for it; no client system, endpoint or payload is reproduced here.

Related: contact-dedupe-mcp (the matching logic these patterns hand data to) · workflow-automation-patterns (the same concerns at the n8n/Make/Zapier layer) · automation-portfolio (the full index).

Licence

MIT.
