Fix right-panel split removal and drop bounds - #2486

Merged
SawyerHood merged 1 commit into
mainfrom
bb/fix-split-tab-ux-thr_q8degf2y66
Aug 27, 2026
Merged

Fix right-panel split removal and drop bounds#2486
SawyerHood merged 1 commit into
mainfrom
bb/fix-split-tab-ux-thr_q8degf2y66

Conversation

@brsbl

@brsbl brsbl commented Aug 26, 2026

Copy link
Copy Markdown
Collaborator

Summary

  • Keep Info and Diff fixed rather than making them generally closeable.
  • Add a trailing, keyboard-focusable Remove split × only while a right-panel tab is in a split.
  • Preserve the tab-pill × as the close action for normally closeable tabs; the pane-edge × removes the split without closing its tabs.
  • Confine tab-split drop targets to the right panel while preserving right-panel split creation and tab reordering.

Product decision

Info and Diff remain fixed. Making them closeable would change existing Cmd+W, Cmd+D, mobile, and persisted-layout behavior. This layer extends the existing thread/page split semantics instead: closing a tab and removing a split remain two distinct actions.

Screenshot evidence

All web captures use Chrome for Testing 151.0.7922.71 at the same 1440×900 CSS viewport (DPR 2) and the same one-file Split tab UX verification fixture. The before revision is the PR merge base b629714e31487bde8af5574639422a9b5c97cbb5; the after revision is exact PR head 35050edb632c1007f14978c6c5e5bfe4dd83a259.

Split-only remove control

Before, fixed Info and Diff panes have no remove-split affordance.

Before: fixed Info and Diff split without pane-edge remove controls

After, each split pane has a trailing ×. Its accessible name is Remove split; it disappears when the layout returns to one pane.

After: fixed Info and Diff split with pane-edge remove controls

Drag boundary

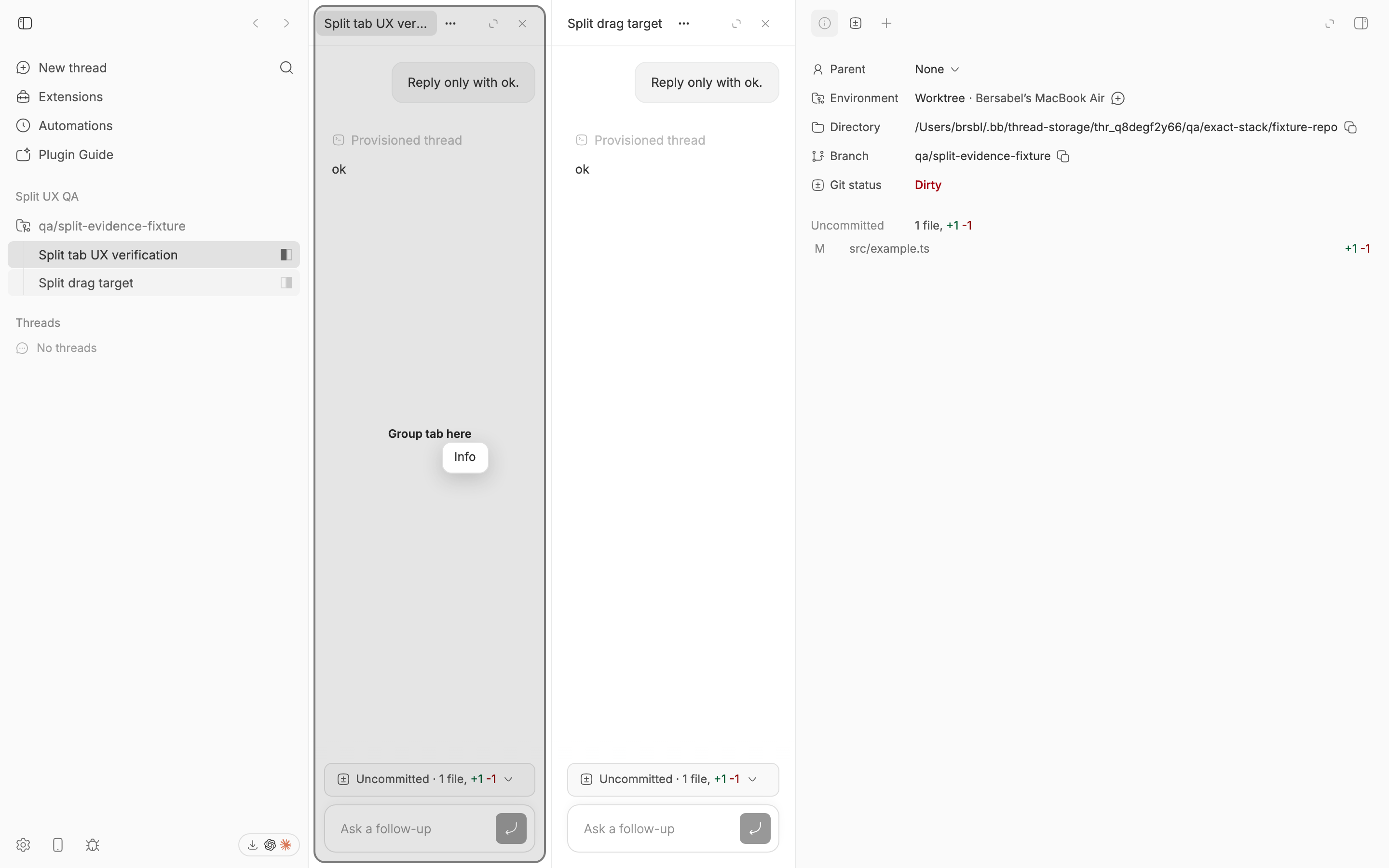

Before, dragging a right-panel tab over the main workspace exposes the web-only Group tab here target.

Before: main workspace incorrectly accepts a right-panel tab drop

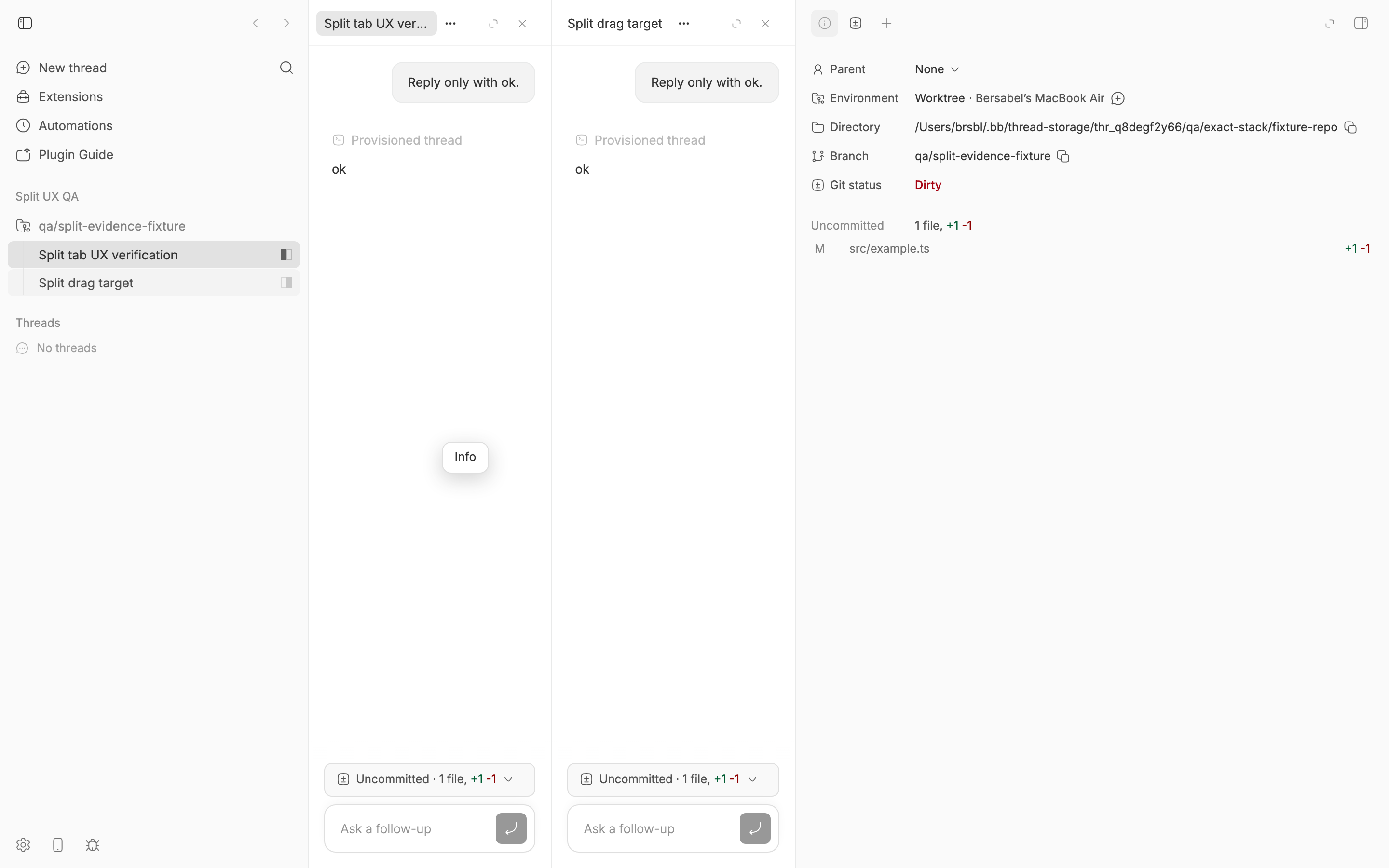

After, the same drag over the main workspace has no drop target.

After: main workspace rejects the right-panel tab drag

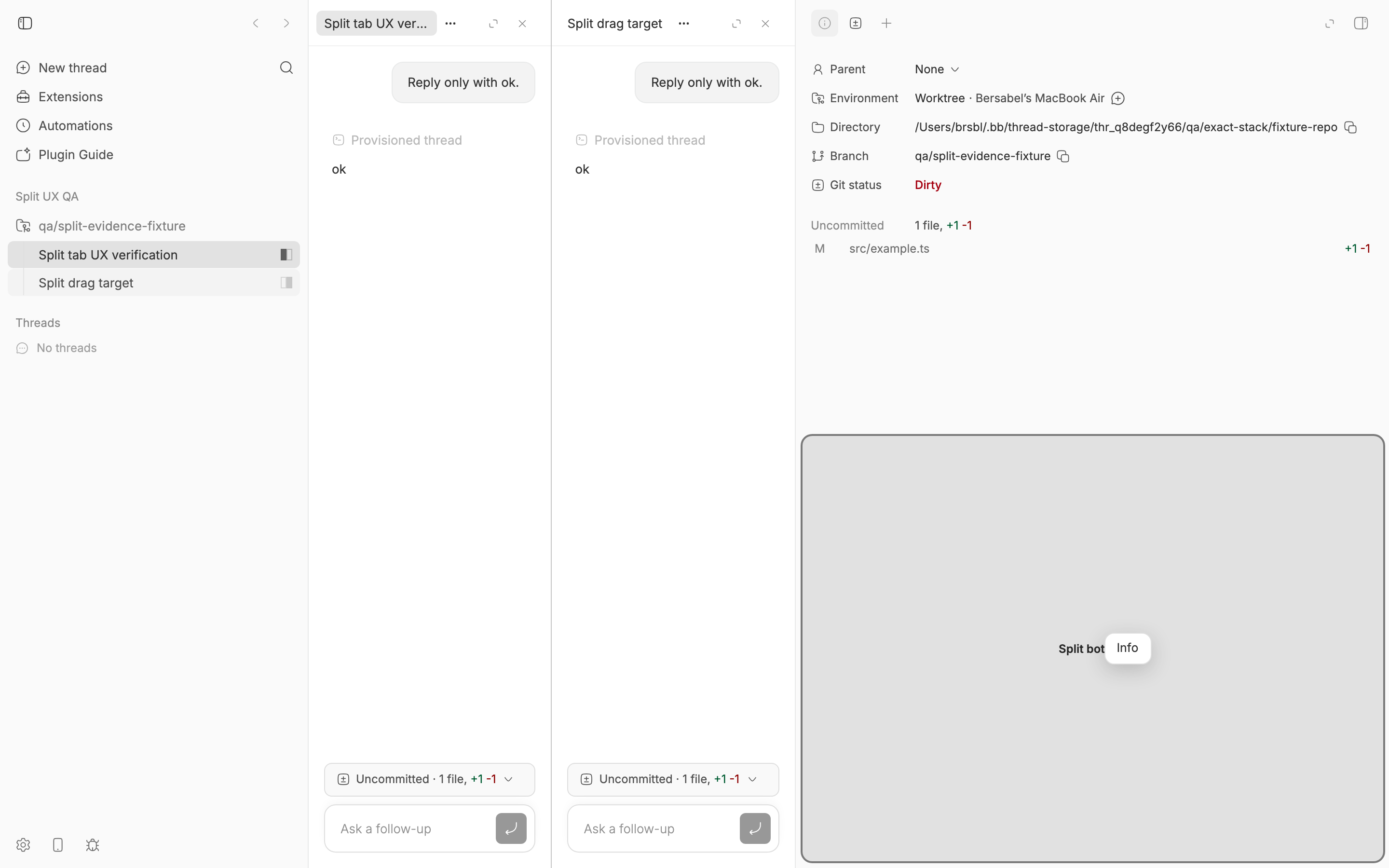

The right panel still exposes its intended split target.

After: right panel still accepts the tab as a bottom split

Validation

  • Capture manifests record the exact revisions above, identical fixture and viewport, zero rendered error states, two Remove split controls after the change, no main-workspace overlay after the change, and a preserved Split bottom target inside the right panel.
  • Regression coverage in this layer targets split-only visibility, accessible naming, native-button Enter/Space activation, tab preservation, close-action independence, and in-panel/out-of-panel drag targeting.
  • Tests, typechecks, lint, and other CI-equivalent checks run on the pull request through GitHub Actions; none were run locally for this screenshot audit.

Closes #2450

BB-Thread-ID: thr_q8degf2y66

AGENT GENERATED: by GPT-5.6-Sol

@brsbl
brsbl force-pushed the bb/fix-split-tab-ux-thr_q8degf2y66 branch from 95875b8 to 35050ed Compare August 27, 2026 20:54
@SawyerHood
SawyerHood force-pushed the bb/fix-split-tab-ux-thr_q8degf2y66 branch 3 times, most recently from 75f988f to 35050ed Compare August 27, 2026 22:51
@brsbl
brsbl force-pushed the bb/fix-split-tab-ux-thr_q8degf2y66 branch from 35050ed to e8f82c3 Compare August 27, 2026 23:47
@SawyerHood
SawyerHood merged commit 1cce011 into main Aug 27, 2026
14 of 15 checks passed
@SawyerHood
SawyerHood deleted the bb/fix-split-tab-ux-thr_q8degf2y66 branch August 27, 2026 23:50
