🥁 Taiko no Tatsujin theme for Turing Smart Screen 3.5" (portrait) + HWiNFO sensors

[LuisFellp]

Hi! I made a colorful theme inspired by Taiko no Tatsujin for the 3.5" Turing Smart Screen (320×480, portrait). It was designed together with Claude (Anthropic): the background is original art generated by code (no official Bandai Namco assets), using the game's palette (red don / blue ka notes, seigaiha waves, a note lane for the FPS).

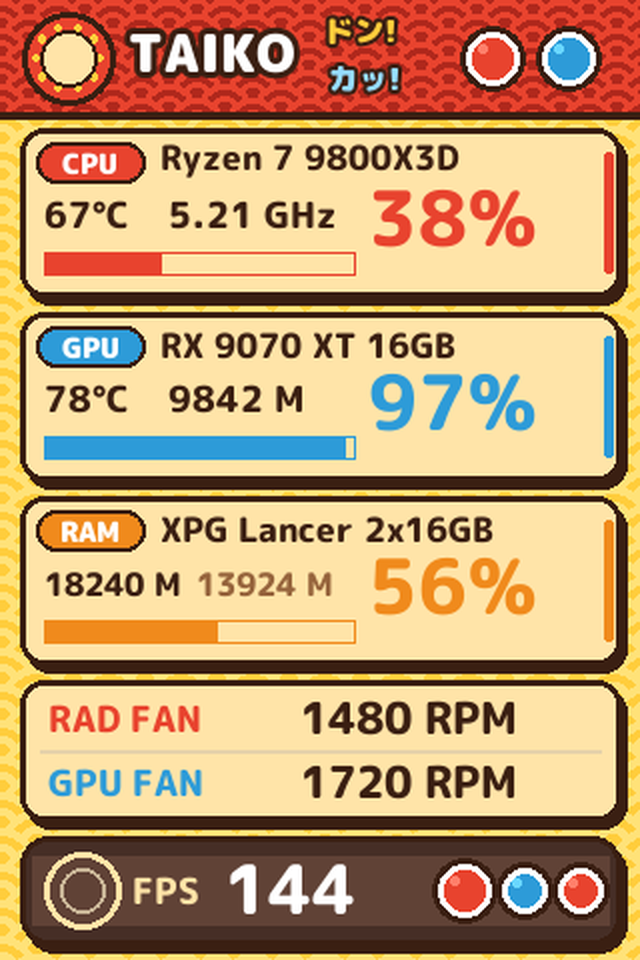

Shows: CPU temp (Tctl/Tdie), average core clock, usage + graph · GPU hot spot temp, VRAM, usage + graph · RAM used/free/% · radiator & GPU fans in RPM · average FPS (~10 s, from RTSS).

👉 Repo + install steps: https://github.com/LuisFellp/taiko-smart-screen-theme

Notes:

• Font: M PLUS Rounded 1c (OFL, included).
• It uses a small HWiNFO backend (HW_SENSORS: HWINFO) that reads HWiNFO's Gadget registry values, so the hardware is polled only once (by HWiNFO) and it does not need admin rights. The repo has sensors_hwinfo.py, the custom sensors (CPU_FAN_RPM, GPU_FAN_RPM, GPU_HOTSPOT) and the 10-line patch for library/stats.py.
• Without the HWiNFO backend, the theme still loads, but the RPM fields will show N/A.
• Everything refreshes every 2 s. I had image corruption on my rev. A screen with faster refresh rates, and that fixed it.
• The background generator (gerar_fundo.py) is included if you want to change colors.

Feel free to use and modify it. ドン! カッ!
